Quantization
Goals
Understand the basic concept of quantization
Implement and apply k-means quantization
Implement and apply quantization-aware training for k-means quantization
Implement and apply linear quantization
Implement and apply integer-only inference for linear quantization
Get a basic understanding of performance improvement (such as speedup) from quantization
Understand the differences and tradeoffs between these quantization approaches
Setup
First, install the required packages and download the datasets and pretrained model. Here we use CIFAR10 dataset and VGG network which is the same as what we used in the Lab 0 tutorial.
print('Installing torchprofile...')
!pip install torchprofile 1>/dev/null
print('Installing fast-pytorch-kmeans...')
! pip install fast-pytorch-kmeans 1>/dev/null
print('All required packages have been successfully installed!')
Installing torchprofile...
Installing fast-pytorch-kmeans...
All required packages have been successfully installed!
import copy
import math
import random
from collections import OrderedDict, defaultdict
from matplotlib import pyplot as plt
from matplotlib.colors import ListedColormap
import numpy as np
from tqdm.auto import tqdm
import torch
from torch import nn
from torch.optim import *
from torch.optim.lr_scheduler import *
from torch.utils.data import DataLoader
from torchprofile import profile_macs
from torchvision.datasets import *
from torchvision.transforms import *
from torchprofile import profile_macs
random.seed(0)
np.random.seed(0)
torch.manual_seed(0)
<torch._C.Generator at 0x7f51fd7c5810>
def download_url(url, model_dir='.', overwrite=False):
import os, sys
from urllib.request import urlretrieve
target_dir = url.split('/')[-1]
model_dir = os.path.expanduser(model_dir)
try:
if not os.path.exists(model_dir):
os.makedirs(model_dir)
model_dir = os.path.join(model_dir, target_dir)
cached_file = model_dir
if not os.path.exists(cached_file) or overwrite:
sys.stderr.write('Downloading: "{}" to {}\n'.format(url, cached_file))
urlretrieve(url, cached_file)
return cached_file
except Exception as e:
# remove lock file so download can be executed next time.
os.remove(os.path.join(model_dir, 'download.lock'))
sys.stderr.write('Failed to download from url %s' % url + '\n' + str(e) + '\n')
return None
class VGG(nn.Module):
ARCH = [64, 128, 'M', 256, 256, 'M', 512, 512, 'M', 512, 512, 'M']
def __init__(self) -> None:
super().__init__()
layers = []
counts = defaultdict(int)
def add(name: str, layer: nn.Module) -> None:
layers.append((f"{name}{counts[name]}", layer))
counts[name] += 1
in_channels = 3
for x in self.ARCH:
if x != 'M':
# conv-bn-relu
add("conv", nn.Conv2d(in_channels, x, 3, padding=1, bias=False))
add("bn", nn.BatchNorm2d(x))
add("relu", nn.ReLU(True))
in_channels = x
else:
# maxpool
add("pool", nn.MaxPool2d(2))
add("avgpool", nn.AvgPool2d(2))
self.backbone = nn.Sequential(OrderedDict(layers))
self.classifier = nn.Linear(512, 10)
def forward(self, x: torch.Tensor) -> torch.Tensor:
# backbone: [N, 3, 32, 32] => [N, 512, 2, 2]
x = self.backbone(x)
# avgpool: [N, 512, 2, 2] => [N, 512]
# x = x.mean([2, 3])
x = x.view(x.shape[0], -1)
# classifier: [N, 512] => [N, 10]
x = self.classifier(x)
return x
def train(
model: nn.Module,
dataloader: DataLoader,
criterion: nn.Module,
optimizer: Optimizer,
scheduler: LambdaLR,
callbacks = None
) -> None:
model.train()
for inputs, targets in tqdm(dataloader, desc='train', leave=False):
# Move the data from CPU to GPU
inputs = inputs.cuda()
targets = targets.cuda()
# Reset the gradients (from the last iteration)
optimizer.zero_grad()
# Forward inference
outputs = model(inputs)
loss = criterion(outputs, targets)
# Backward propagation
loss.backward()
# Update optimizer and LR scheduler
optimizer.step()
scheduler.step()
if callbacks is not None:
for callback in callbacks:
callback()
@torch.inference_mode()
def evaluate(
model: nn.Module,
dataloader: DataLoader,
extra_preprocess = None
) -> float:
model.eval()
num_samples = 0
num_correct = 0
for inputs, targets in tqdm(dataloader, desc="eval", leave=False):
# Move the data from CPU to GPU
inputs = inputs.cuda()
if extra_preprocess is not None:
for preprocess in extra_preprocess:
inputs = preprocess(inputs)
targets = targets.cuda()
# Inference
outputs = model(inputs)
# Convert logits to class indices
outputs = outputs.argmax(dim=1)
# Update metrics
num_samples += targets.size(0)
num_correct += (outputs == targets).sum()
return (num_correct / num_samples * 100).item()
Helpler Functions (Flops, Model Size calculation, etc.)
def get_model_flops(model, inputs):
num_macs = profile_macs(model, inputs)
return num_macs
def get_model_size(model: nn.Module, data_width=32):
"""
calculate the model size in bits
:param data_width: #bits per element
"""
num_elements = 0
for param in model.parameters():
num_elements += param.numel()
return num_elements * data_width
Byte = 8
KiB = 1024 * Byte
MiB = 1024 * KiB
GiB = 1024 * MiB
Define misc funcions for verification.
def test_k_means_quantize(
test_tensor=torch.tensor([
[-0.3747, 0.0874, 0.3200, -0.4868, 0.4404],
[-0.0402, 0.2322, -0.2024, -0.4986, 0.1814],
[ 0.3102, -0.3942, -0.2030, 0.0883, -0.4741],
[-0.1592, -0.0777, -0.3946, -0.2128, 0.2675],
[ 0.0611, -0.1933, -0.4350, 0.2928, -0.1087]]),
bitwidth=2):
def plot_matrix(tensor, ax, title, cmap=ListedColormap(['white'])):
ax.imshow(tensor.cpu().numpy(), vmin=-0.5, vmax=0.5, cmap=cmap)
ax.set_title(title)
ax.set_yticklabels([])
ax.set_xticklabels([])
for i in range(tensor.shape[1]):
for j in range(tensor.shape[0]):
text = ax.text(j, i, f'{tensor[i, j].item():.2f}',
ha="center", va="center", color="k")
fig, axes = plt.subplots(1,2, figsize=(8, 12))
ax_left, ax_right = axes.ravel()
plot_matrix(test_tensor, ax_left, 'original tensor')
num_unique_values_before_quantization = test_tensor.unique().numel()
k_means_quantize(test_tensor, bitwidth=bitwidth)
num_unique_values_after_quantization = test_tensor.unique().numel()
print('* Test k_means_quantize()')
print(f' target bitwidth: {bitwidth} bits')
print(f' num unique values before k-means quantization: {num_unique_values_before_quantization}')
print(f' num unique values after k-means quantization: {num_unique_values_after_quantization}')
assert num_unique_values_after_quantization == min((1 << bitwidth), num_unique_values_before_quantization)
print('* Test passed.')
plot_matrix(test_tensor, ax_right, f'{bitwidth}-bit k-means quantized tensor', cmap='tab20c')
fig.tight_layout()
plt.show()

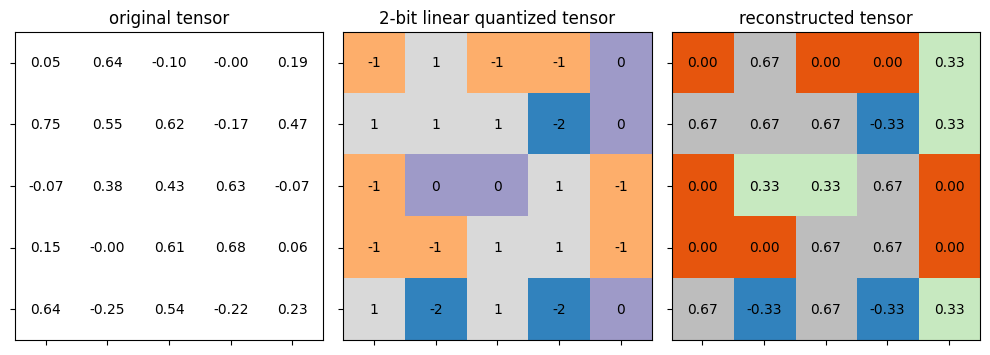

def test_linear_quantize(
test_tensor=torch.tensor([
[ 0.0523, 0.6364, -0.0968, -0.0020, 0.1940],
[ 0.7500, 0.5507, 0.6188, -0.1734, 0.4677],
[-0.0669, 0.3836, 0.4297, 0.6267, -0.0695],
[ 0.1536, -0.0038, 0.6075, 0.6817, 0.0601],
[ 0.6446, -0.2500, 0.5376, -0.2226, 0.2333]]),
quantized_test_tensor=torch.tensor([
[-1, 1, -1, -1, 0],
[ 1, 1, 1, -2, 0],
[-1, 0, 0, 1, -1],
[-1, -1, 1, 1, -1],
[ 1, -2, 1, -2, 0]], dtype=torch.int8),
real_min=-0.25, real_max=0.75, bitwidth=2, scale=1/3, zero_point=-1):
def plot_matrix(tensor, ax, title, vmin=0, vmax=1, cmap=ListedColormap(['white'])):
ax.imshow(tensor.cpu().numpy(), vmin=vmin, vmax=vmax, cmap=cmap)
ax.set_title(title)
ax.set_yticklabels([])
ax.set_xticklabels([])
for i in range(tensor.shape[0]):
for j in range(tensor.shape[1]):
datum = tensor[i, j].item()
if isinstance(datum, float):
text = ax.text(j, i, f'{datum:.2f}',
ha="center", va="center", color="k")
else:
text = ax.text(j, i, f'{datum}',
ha="center", va="center", color="k")
quantized_min, quantized_max = get_quantized_range(bitwidth)
fig, axes = plt.subplots(1,3, figsize=(10, 32))
plot_matrix(test_tensor, axes[0], 'original tensor', vmin=real_min, vmax=real_max)
_quantized_test_tensor = linear_quantize(
test_tensor, bitwidth=bitwidth, scale=scale, zero_point=zero_point)
_reconstructed_test_tensor = scale * (_quantized_test_tensor.float() - zero_point)
print('* Test linear_quantize()')
print(f' target bitwidth: {bitwidth} bits')
print(f' scale: {scale}')
print(f' zero point: {zero_point}')
assert _quantized_test_tensor.equal(quantized_test_tensor)
print('* Test passed.')
plot_matrix(_quantized_test_tensor, axes[1], f'2-bit linear quantized tensor',
vmin=quantized_min, vmax=quantized_max, cmap='tab20c')
plot_matrix(_reconstructed_test_tensor, axes[2], f'reconstructed tensor',
vmin=real_min, vmax=real_max, cmap='tab20c')
fig.tight_layout()
plt.show()

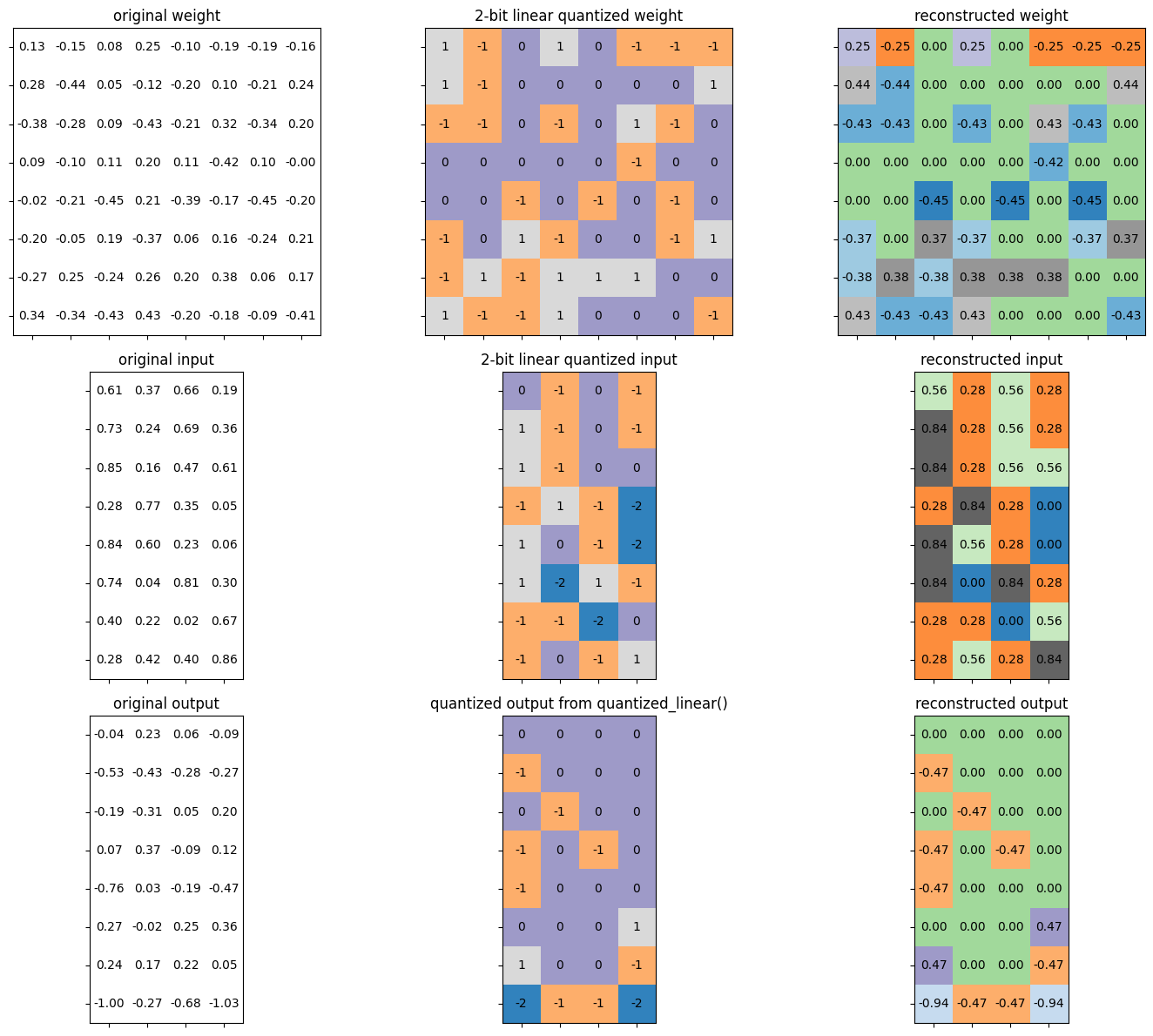

def test_quantized_fc(
input=torch.tensor([
[0.6118, 0.7288, 0.8511, 0.2849, 0.8427, 0.7435, 0.4014, 0.2794],
[0.3676, 0.2426, 0.1612, 0.7684, 0.6038, 0.0400, 0.2240, 0.4237],
[0.6565, 0.6878, 0.4670, 0.3470, 0.2281, 0.8074, 0.0178, 0.3999],
[0.1863, 0.3567, 0.6104, 0.0497, 0.0577, 0.2990, 0.6687, 0.8626]]),
weight=torch.tensor([
[ 1.2626e-01, -1.4752e-01, 8.1910e-02, 2.4982e-01, -1.0495e-01,
-1.9227e-01, -1.8550e-01, -1.5700e-01],
[ 2.7624e-01, -4.3835e-01, 5.1010e-02, -1.2020e-01, -2.0344e-01,
1.0202e-01, -2.0799e-01, 2.4112e-01],
[-3.8216e-01, -2.8047e-01, 8.5238e-02, -4.2504e-01, -2.0952e-01,
3.2018e-01, -3.3619e-01, 2.0219e-01],
[ 8.9233e-02, -1.0124e-01, 1.1467e-01, 2.0091e-01, 1.1438e-01,
-4.2427e-01, 1.0178e-01, -3.0941e-04],
[-1.8837e-02, -2.1256e-01, -4.5285e-01, 2.0949e-01, -3.8684e-01,
-1.7100e-01, -4.5331e-01, -2.0433e-01],
[-2.0038e-01, -5.3757e-02, 1.8997e-01, -3.6866e-01, 5.5484e-02,
1.5643e-01, -2.3538e-01, 2.1103e-01],
[-2.6875e-01, 2.4984e-01, -2.3514e-01, 2.5527e-01, 2.0322e-01,
3.7675e-01, 6.1563e-02, 1.7201e-01],
[ 3.3541e-01, -3.3555e-01, -4.3349e-01, 4.3043e-01, -2.0498e-01,
-1.8366e-01, -9.1553e-02, -4.1168e-01]]),
bias=torch.tensor([ 0.1954, -0.2756, 0.3113, 0.1149, 0.4274, 0.2429, -0.1721, -0.2502]),
quantized_bias=torch.tensor([ 3, -2, 3, 1, 3, 2, -2, -2], dtype=torch.int32),
shifted_quantized_bias=torch.tensor([-1, 0, -3, -1, -3, 0, 2, -4], dtype=torch.int32),
calc_quantized_output=torch.tensor([
[ 0, -1, 0, -1, -1, 0, 1, -2],
[ 0, 0, -1, 0, 0, 0, 0, -1],
[ 0, 0, 0, -1, 0, 0, 0, -1],
[ 0, 0, 0, 0, 0, 1, -1, -2]], dtype=torch.int8),
bitwidth=2, batch_size=4, in_channels=8, out_channels=8):
def plot_matrix(tensor, ax, title, vmin=0, vmax=1, cmap=ListedColormap(['white'])):
ax.imshow(tensor.cpu().numpy(), vmin=vmin, vmax=vmax, cmap=cmap)
ax.set_title(title)
ax.set_yticklabels([])
ax.set_xticklabels([])
for i in range(tensor.shape[0]):
for j in range(tensor.shape[1]):
datum = tensor[i, j].item()
if isinstance(datum, float):
text = ax.text(j, i, f'{datum:.2f}',
ha="center", va="center", color="k")
else:
text = ax.text(j, i, f'{datum}',
ha="center", va="center", color="k")
output = torch.nn.functional.linear(input, weight, bias)
quantized_weight, weight_scale, weight_zero_point = \
linear_quantize_weight_per_channel(weight, bitwidth)
quantized_input, input_scale, input_zero_point = \
linear_quantize_feature(input, bitwidth)
_quantized_bias, bias_scale, bias_zero_point = \
linear_quantize_bias_per_output_channel(bias, weight_scale, input_scale)
assert _quantized_bias.equal(_quantized_bias)
_shifted_quantized_bias = \
shift_quantized_linear_bias(quantized_bias, quantized_weight, input_zero_point)
assert _shifted_quantized_bias.equal(shifted_quantized_bias)
quantized_output, output_scale, output_zero_point = \
linear_quantize_feature(output, bitwidth)
_calc_quantized_output = quantized_linear(
quantized_input, quantized_weight, shifted_quantized_bias,
bitwidth, bitwidth,
input_zero_point, output_zero_point,
input_scale, weight_scale, output_scale)
assert _calc_quantized_output.equal(calc_quantized_output)
reconstructed_weight = weight_scale * (quantized_weight.float() - weight_zero_point)
reconstructed_input = input_scale * (quantized_input.float() - input_zero_point)
reconstructed_bias = bias_scale * (quantized_bias.float() - bias_zero_point)
reconstructed_calc_output = output_scale * (calc_quantized_output.float() - output_zero_point)
fig, axes = plt.subplots(3,3, figsize=(15, 12))
quantized_min, quantized_max = get_quantized_range(bitwidth)
plot_matrix(weight, axes[0, 0], 'original weight', vmin=-0.5, vmax=0.5)
plot_matrix(input.t(), axes[1, 0], 'original input', vmin=0, vmax=1)
plot_matrix(output.t(), axes[2, 0], 'original output', vmin=-1.5, vmax=1.5)
plot_matrix(quantized_weight, axes[0, 1], f'{bitwidth}-bit linear quantized weight',
vmin=quantized_min, vmax=quantized_max, cmap='tab20c')
plot_matrix(quantized_input.t(), axes[1, 1], f'{bitwidth}-bit linear quantized input',
vmin=quantized_min, vmax=quantized_max, cmap='tab20c')
plot_matrix(calc_quantized_output.t(), axes[2, 1], f'quantized output from quantized_linear()',
vmin=quantized_min, vmax=quantized_max, cmap='tab20c')
plot_matrix(reconstructed_weight, axes[0, 2], f'reconstructed weight',
vmin=-0.5, vmax=0.5, cmap='tab20c')
plot_matrix(reconstructed_input.t(), axes[1, 2], f'reconstructed input',
vmin=0, vmax=1, cmap='tab20c')
plot_matrix(reconstructed_calc_output.t(), axes[2, 2], f'reconstructed output',
vmin=-1.5, vmax=1.5, cmap='tab20c')
print('* Test quantized_fc()')
print(f' target bitwidth: {bitwidth} bits')
print(f' batch size: {batch_size}')
print(f' input channels: {in_channels}')
print(f' output channels: {out_channels}')
print('* Test passed.')
fig.tight_layout()
plt.show()
Load Pretrained Model
checkpoint_url = "https://hanlab.mit.edu/files/course/labs/vgg.cifar.pretrained.pth"
checkpoint = torch.load(download_url(checkpoint_url), map_location="cpu")
model = VGG().cuda()
print(f"=> loading checkpoint '{checkpoint_url}'")
model.load_state_dict(checkpoint['state_dict'])
recover_model = lambda : model.load_state_dict(checkpoint['state_dict'])
=> loading checkpoint 'https://hanlab.mit.edu/files/course/labs/vgg.cifar.pretrained.pth'
image_size = 32
transforms = {
"train": Compose([
RandomCrop(image_size, padding=4),
RandomHorizontalFlip(),
ToTensor(),
]),
"test": ToTensor(),
}
dataset = {}
for split in ["train", "test"]:
dataset[split] = CIFAR10(
root="data/cifar10",
train=(split == "train"),
download=True,
transform=transforms[split],
)
dataloader = {}
for split in ['train', 'test']:
dataloader[split] = DataLoader(
dataset[split],
batch_size=512,
shuffle=(split == 'train'),
num_workers=0,
pin_memory=True,
)
Files already downloaded and verified
Files already downloaded and verified
Let’s First Evaluate the Accuracy and Model Size of the FP32 Model
fp32_model_accuracy = evaluate(model, dataloader['test'])
fp32_model_size = get_model_size(model)
print(f"fp32 model has accuracy={fp32_model_accuracy:.2f}%")
print(f"fp32 model has size={fp32_model_size/MiB:.2f} MiB")
eval: 0%| | 0/20 [00:00<?, ?it/s]
fp32 model has accuracy=92.95%
fp32 model has size=35.20 MiB
K-Means Quantization
Network quantization compresses the network by reducing the bits per weight required to represent the deep network. The quantized network can have a faster inference speed with hardware support.
In this section, we will explore the K-means quantization for neural networks as in Deep Compression: Compressing Deep Neural Networks With Pruning, Trained Quantization And Huffman Coding.
A \(n\)-bit k-means quantization will divide synapses into \(2^n\) clusters, and synapses in the same cluster will share the same weight value.
Therefore, k-means quantization will create a codebook, inlcuding *
centroids: \(2^n\) fp32 cluster centers. * labels: a
\(n\)-bit integer tensor with the same #elements of the original
fp32 weights tensor. Each integer indicates which cluster it belongs to.
During the inference, a fp32 tensor is generated based on the codebook for inference:
quantized_weight = codebook.centroids[codebook.labels].view_as(weight)
from collections import namedtuple
Codebook = namedtuple('Codebook', ['centroids', 'labels'])
from fast_pytorch_kmeans import KMeans
def k_means_quantize(fp32_tensor: torch.Tensor, bitwidth=4, codebook=None):
"""
quantize tensor using k-means clustering
:param fp32_tensor:
:param bitwidth: [int] quantization bit width, default=4
:param codebook: [Codebook] (the cluster centroids, the cluster label tensor)
:return:
[Codebook = (centroids, labels)]
centroids: [torch.(cuda.)FloatTensor] the cluster centroids
labels: [torch.(cuda.)LongTensor] cluster label tensor
"""
if codebook is None:
# get number of clusters based on the quantization precision
# hint: one line of code
n_clusters = 1 << bitwidth
# use k-means to get the quantization centroids
kmeans = KMeans(n_clusters=n_clusters, mode='euclidean', verbose=0)
labels = kmeans.fit_predict(fp32_tensor.view(-1, 1)).to(torch.long)
centroids = kmeans.centroids.to(torch.float).view(-1)
codebook = Codebook(centroids, labels)
# decode the codebook into k-means quantized tensor for inference
# hint: one line of code
quantized_tensor = codebook.centroids[codebook.labels]
fp32_tensor.set_(quantized_tensor.view_as(fp32_tensor))
return codebook
Let’s verify the functionality of defined k-means quantization by applying the function above on a dummy tensor.
test_k_means_quantize()
* Test k_means_quantize()
target bitwidth: 2 bits
num unique values before k-means quantization: 25
num unique values after k-means quantization: 4
* Test passed.
The last code cell performs 2-bit k-means quantization and plots the tensor before and after the quantization. Each cluster is rendered with a unique color. There are 4 unique colors rendered in the quantized tensor.
K-Means Quantization on Whole Model
Similar to what we did in lab 1, we now wrap the k-means quantization
function into a class for quantizing the whole model. In class
KMeansQuantizer, we have to keep a record of the codebooks (i.e.,
centroids and labels) so that we could apply or update the
codebooks whenever the model weights change.
from torch.nn import parameter
class KMeansQuantizer:
def __init__(self, model : nn.Module, bitwidth=4):
self.codebook = KMeansQuantizer.quantize(model, bitwidth)
@torch.no_grad()
def apply(self, model, update_centroids):
for name, param in model.named_parameters():
if name in self.codebook:
if update_centroids:
update_codebook(param, codebook=self.codebook[name])
self.codebook[name] = k_means_quantize(
param, codebook=self.codebook[name])
@staticmethod
@torch.no_grad()
def quantize(model: nn.Module, bitwidth=4):
codebook = dict()
if isinstance(bitwidth, dict):
for name, param in model.named_parameters():
if name in bitwidth:
codebook[name] = k_means_quantize(param, bitwidth=bitwidth[name])
else:
for name, param in model.named_parameters():
if param.dim() > 1:
codebook[name] = k_means_quantize(param, bitwidth=bitwidth)
return codebook
Now let’s quantize model into 8 bits, 4 bits and 2 bits using K-Means Quantization. Note that we ignore the storage for codebooks when calculating the model size.
print('Note that the storage for codebooks is ignored when calculating the model size.')
quantizers = dict()
for bitwidth in [8, 4, 2]:
recover_model()
print(f'k-means quantizing model into {bitwidth} bits')
quantizer = KMeansQuantizer(model, bitwidth)
quantized_model_size = get_model_size(model, bitwidth)
print(f" {bitwidth}-bit k-means quantized model has size={quantized_model_size/MiB:.2f} MiB")
quantized_model_accuracy = evaluate(model, dataloader['test'])
print(f" {bitwidth}-bit k-means quantized model has accuracy={quantized_model_accuracy:.2f}%")
quantizers[bitwidth] = quantizer
Note that the storage for codebooks is ignored when calculating the model size.
k-means quantizing model into 8 bits
8-bit k-means quantized model has size=8.80 MiB
eval: 0%| | 0/20 [00:00<?, ?it/s]
8-bit k-means quantized model has accuracy=92.78%
k-means quantizing model into 4 bits
4-bit k-means quantized model has size=4.40 MiB
eval: 0%| | 0/20 [00:00<?, ?it/s]
4-bit k-means quantized model has accuracy=79.08%
k-means quantizing model into 2 bits
2-bit k-means quantized model has size=2.20 MiB
eval: 0%| | 0/20 [00:00<?, ?it/s]
2-bit k-means quantized model has accuracy=10.00%
Trained K-Means Quantization
As we can see from the results of last cell, the accuracy significantly drops when quantizing the model into lower bits. Therefore, we have to perform quantization-aware training to recover the accuracy.
During the k-means quantization-aware training, the centroids are also updated, which is proposed in Deep Compression: Compressing Deep Neural Networks With Pruning, Trained Quantization And Huffman Coding.
The gradient for the centroids is calculated as,
\(\frac{\partial \mathcal{L} }{\partial C_k} = \sum_{j} \frac{\partial \mathcal{L} }{\partial W_{j}} \frac{\partial W_{j} }{\partial C_k} = \sum_{j} \frac{\partial \mathcal{L} }{\partial W_{j}} \mathbf{1}(I_{j}=k)\)
where \(\mathcal{L}\) is the loss, \(C_k\) is k-th centroid, \(I_{j}\) is the label for weight \(W_{j}\). \(\mathbf{1}()\) is the indicator function, and \(\mathbf{1}(I_{j}=k)\) means \(1\;\mathrm{if}\;I_{j}=k\;\mathrm{else}\;0\), i.e., \(I_{j}==k\).
Here in the lab, for simplicity, we directly update the centroids according to the latest weights:
\(C_k = \frac{\sum_{j}W_{j}\mathbf{1}(I_{j}=k)}{\sum_{j}\mathbf{1}(I_{j}=k)}\)
The above equation for updating centroids is indeed using the mean
of weights in the same cluster to be the updated centroid value.
def update_codebook(fp32_tensor: torch.Tensor, codebook: Codebook):
"""
update the centroids in the codebook using updated fp32_tensor
:param fp32_tensor: [torch.(cuda.)Tensor]
:param codebook: [Codebook] (the cluster centroids, the cluster label tensor)
"""
n_clusters = codebook.centroids.numel()
fp32_tensor = fp32_tensor.view(-1)
for k in range(n_clusters):
# hint: one line of code
codebook.centroids[k] = fp32_tensor[codebook.labels == k].mean()
Now let’s run the following code cell to finetune the k-means quantized model to recover the accuracy. We will stop finetuning if accuracy drop is less than 0.5.
accuracy_drop_threshold = 0.5
quantizers_before_finetune = copy.deepcopy(quantizers)
quantizers_after_finetune = quantizers
for bitwidth in [8, 4, 2]:
recover_model()
quantizer = quantizers[bitwidth]
print(f'k-means quantizing model into {bitwidth} bits')
quantizer.apply(model, update_centroids=False)
quantized_model_size = get_model_size(model, bitwidth)
print(f" {bitwidth}-bit k-means quantized model has size={quantized_model_size/MiB:.2f} MiB")
quantized_model_accuracy = evaluate(model, dataloader['test'])
print(f" {bitwidth}-bit k-means quantized model has accuracy={quantized_model_accuracy:.2f}% before quantization-aware training ")
accuracy_drop = fp32_model_accuracy - quantized_model_accuracy
if accuracy_drop > accuracy_drop_threshold:
print(f" Quantization-aware training due to accuracy drop={accuracy_drop:.2f}% is larger than threshold={accuracy_drop_threshold:.2f}%")
num_finetune_epochs = 5
optimizer = torch.optim.SGD(model.parameters(), lr=0.01, momentum=0.9)
scheduler = torch.optim.lr_scheduler.CosineAnnealingLR(optimizer, num_finetune_epochs)
criterion = nn.CrossEntropyLoss()
best_accuracy = 0
epoch = num_finetune_epochs
while accuracy_drop > accuracy_drop_threshold and epoch > 0:
train(model, dataloader['train'], criterion, optimizer, scheduler,
callbacks=[lambda: quantizer.apply(model, update_centroids=True)])
model_accuracy = evaluate(model, dataloader['test'])
is_best = model_accuracy > best_accuracy
best_accuracy = max(model_accuracy, best_accuracy)
print(f' Epoch {num_finetune_epochs-epoch} Accuracy {model_accuracy:.2f}% / Best Accuracy: {best_accuracy:.2f}%')
accuracy_drop = fp32_model_accuracy - best_accuracy
epoch -= 1
else:
print(f" No need for quantization-aware training since accuracy drop={accuracy_drop:.2f}% is smaller than threshold={accuracy_drop_threshold:.2f}%")
k-means quantizing model into 8 bits
8-bit k-means quantized model has size=8.80 MiB
eval: 0%| | 0/20 [00:00<?, ?it/s]
8-bit k-means quantized model has accuracy=92.78% before quantization-aware training
No need for quantization-aware training since accuracy drop=0.17% is smaller than threshold=0.50%
k-means quantizing model into 4 bits
4-bit k-means quantized model has size=4.40 MiB
eval: 0%| | 0/20 [00:00<?, ?it/s]
4-bit k-means quantized model has accuracy=79.08% before quantization-aware training
Quantization-aware training due to accuracy drop=13.87% is larger than threshold=0.50%
train: 0%| | 0/98 [00:00<?, ?it/s]
eval: 0%| | 0/20 [00:00<?, ?it/s]
Epoch 0 Accuracy 92.48% / Best Accuracy: 92.48%
k-means quantizing model into 2 bits
2-bit k-means quantized model has size=2.20 MiB
eval: 0%| | 0/20 [00:00<?, ?it/s]
2-bit k-means quantized model has accuracy=10.00% before quantization-aware training
Quantization-aware training due to accuracy drop=82.95% is larger than threshold=0.50%
train: 0%| | 0/98 [00:00<?, ?it/s]
eval: 0%| | 0/20 [00:00<?, ?it/s]
Epoch 0 Accuracy 90.16% / Best Accuracy: 90.16%
train: 0%| | 0/98 [00:00<?, ?it/s]
eval: 0%| | 0/20 [00:00<?, ?it/s]
Epoch 1 Accuracy 90.82% / Best Accuracy: 90.82%
train: 0%| | 0/98 [00:00<?, ?it/s]
eval: 0%| | 0/20 [00:00<?, ?it/s]
Epoch 2 Accuracy 91.04% / Best Accuracy: 91.04%
train: 0%| | 0/98 [00:00<?, ?it/s]
eval: 0%| | 0/20 [00:00<?, ?it/s]
Epoch 3 Accuracy 91.11% / Best Accuracy: 91.11%
train: 0%| | 0/98 [00:00<?, ?it/s]
eval: 0%| | 0/20 [00:00<?, ?it/s]
Epoch 4 Accuracy 91.19% / Best Accuracy: 91.19%
Linear Quantization
In this section, we will implement and perform linear quantization.
Linear quantization directly rounds the floating-point value into the nearest quantized integer after range truncation and scaling.
Linear quantization can be represented as
\(r = S(q-Z)\)
where \(r\) is a floating point real number, \(q\) is a n-bit integer, \(Z\) is a n-bit integer, and \(S\) is a floating point real number. \(Z\) is quantization zero point and \(S\) is quantization scaling factor. Both constant \(Z\) and \(S\) are quantization parameters.
n-bit Integer
A n-bit signed integer is usually represented in two’s complement notation.
A n-bit signed integer can enode integers in the range \([-2^{n-1}, 2^{n-1}-1]\). For example, a 8-bit integer falls in the range [-128, 127].
def get_quantized_range(bitwidth):
quantized_max = (1 << (bitwidth - 1)) - 1
quantized_min = -(1 << (bitwidth - 1))
return quantized_min, quantized_max
From \(r=S(q-Z)\), we have \(q = r/S + Z\).
Both \(r\) and \(S\) are floating numbers, and thus we cannot directly add integer \(Z\) to \(r/S\). Therefore \(q = \mathrm{int}(\mathrm{round}(r/S)) + Z\).
def linear_quantize(fp_tensor, bitwidth, scale, zero_point, dtype=torch.int8) -> torch.Tensor:
"""
linear quantization for single fp_tensor
from
fp_tensor = (quantized_tensor - zero_point) * scale
we have,
quantized_tensor = int(round(fp_tensor / scale)) + zero_point
:param tensor: [torch.(cuda.)FloatTensor] floating tensor to be quantized
:param bitwidth: [int] quantization bit width
:param scale: [torch.(cuda.)FloatTensor] scaling factor
:param zero_point: [torch.(cuda.)IntTensor] the desired centroid of tensor values
:return:
[torch.(cuda.)FloatTensor] quantized tensor whose values are integers
"""
assert(fp_tensor.dtype == torch.float)
assert(isinstance(scale, float) or
(scale.dtype == torch.float and scale.dim() == fp_tensor.dim()))
assert(isinstance(zero_point, int) or
(zero_point.dtype == dtype and zero_point.dim() == fp_tensor.dim()))
# Step 1: scale the fp_tensor
scaled_tensor = fp_tensor.div(scale)
# Step 2: round the floating value to integer value
rounded_tensor = scaled_tensor.round_()
rounded_tensor = rounded_tensor.to(dtype)
# Step 3: shift the rounded_tensor to make zero_point 0
shifted_tensor = rounded_tensor.add_(zero_point)
# Step 4: clamp the shifted_tensor to lie in bitwidth-bit range
quantized_min, quantized_max = get_quantized_range(bitwidth)
quantized_tensor = shifted_tensor.clamp_(quantized_min, quantized_max)
return quantized_tensor
Let’s verify the functionality of defined linear quantization by applying the function above on a dummy tensor.
test_linear_quantize()
* Test linear_quantize()
target bitwidth: 2 bits
scale: 0.3333333333333333
zero point: -1
* Test passed.
Now we have to determine the scaling factor \(S\) and zero point \(Z\) for linear quantization.
Recall that linear quantization can be represented as
\(r = S(q-Z)\)
Scale
Linear quantization projects the floating point range [fp_min, fp_max] to the quantized range [quantized_min, quantized_max]. That is to say,
\(r_{\mathrm{max}} = S(q_{\mathrm{max}}-Z)\)
\(r_{\mathrm{min}} = S(q_{\mathrm{min}}-Z)\)
Substracting these two equations, we have,
\(S=(r_{\mathrm{max}} - r_{\mathrm{min}}) / (q_{\mathrm{max}} - q_{\mathrm{min}})\)
There are different approaches to determine the \(r_{\mathrm{min}}\)
and \(r_{\mathrm{max}}\) of a floating point tensor fp_tensor.
The most common method is directly using the minimum and maximum value of
fp_tensor.Another widely used method is minimizing Kullback-Leibler-J divergence to determine the fp_max.
zero point
Once we determine the scaling factor \(S\), we can directly use the relationship between \(r_{\mathrm{min}}\) and \(q_{\mathrm{min}}\) to calculate the zero point \(Z\).
\(Z = \mathrm{int}(\mathrm{round}(q_{\mathrm{min}} - r_{\mathrm{min}} / S))\)
def get_quantization_scale_and_zero_point(fp_tensor, bitwidth):
"""
get quantization scale for single tensor
:param fp_tensor: [torch.(cuda.)Tensor] floating tensor to be quantized
:param bitwidth: [int] quantization bit width
:return:
[float] scale
[int] zero_point
"""
quantized_min, quantized_max = get_quantized_range(bitwidth)
fp_max = fp_tensor.max().item()
fp_min = fp_tensor.min().item()
# hint: one line of code for calculating scale
scale = (fp_max - fp_min) / (quantized_max - quantized_min)
# hint: one line of code for calculating zero_point
zero_point = quantized_min - fp_min / scale
# clip the zero_point to fall in [quantized_min, quantized_max]
if zero_point < quantized_min:
zero_point = quantized_min
elif zero_point > quantized_max:
zero_point = quantized_max
else: # convert from float to int using round()
zero_point = round(zero_point)
return scale, int(zero_point)
We now wrap linear_quantize()and
get_quantization_scale_and_zero_point() into one function.
def linear_quantize_feature(fp_tensor, bitwidth):
"""
linear quantization for feature tensor
:param fp_tensor: [torch.(cuda.)Tensor] floating feature to be quantized
:param bitwidth: [int] quantization bit width
:return:
[torch.(cuda.)Tensor] quantized tensor
[float] scale
[int] zero_point
"""
scale, zero_point = get_quantization_scale_and_zero_point(fp_tensor, bitwidth)
quantized_tensor = linear_quantize(fp_tensor, bitwidth, scale, zero_point)
return quantized_tensor, scale, zero_point
Special case: linear quantization on weight tensor

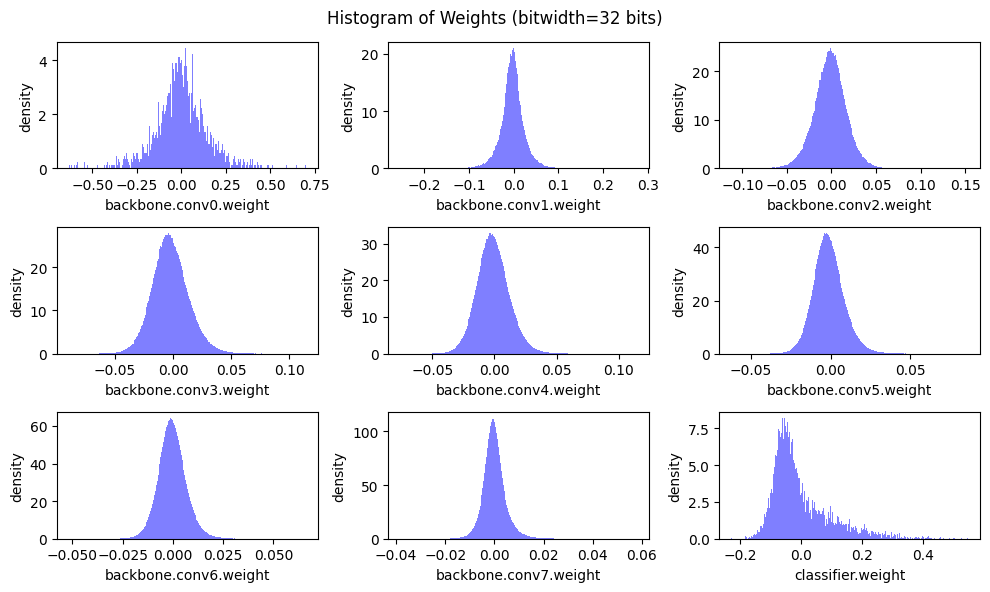

Let’s first see the distribution of weight values.
def plot_weight_distribution(model, bitwidth=32):
# bins = (1 << bitwidth) if bitwidth <= 8 else 256
if bitwidth <= 8:
qmin, qmax = get_quantized_range(bitwidth)
bins = np.arange(qmin, qmax + 2)
align = 'left'
else:
bins = 256
align = 'mid'
fig, axes = plt.subplots(3,3, figsize=(10, 6))
axes = axes.ravel()
plot_index = 0
for name, param in model.named_parameters():
if param.dim() > 1:
ax = axes[plot_index]
ax.hist(param.detach().view(-1).cpu(), bins=bins, density=True,
align=align, color = 'blue', alpha = 0.5,
edgecolor='black' if bitwidth <= 4 else None)
if bitwidth <= 4:
quantized_min, quantized_max = get_quantized_range(bitwidth)
ax.set_xticks(np.arange(start=quantized_min, stop=quantized_max+1))
ax.set_xlabel(name)
ax.set_ylabel('density')
plot_index += 1
fig.suptitle(f'Histogram of Weights (bitwidth={bitwidth} bits)')
fig.tight_layout()
fig.subplots_adjust(top=0.925)
plt.show()
recover_model()
plot_weight_distribution(model)
As we can see from the histograms above, the distribution of weight values are nearly symmetric about 0 (except for the classifier in this case). Therefore, we usually make zero point \(Z=0\) when quantizating the weights.
From \(r = S(q-Z)\), we have
\(r_{\mathrm{max}} = S \cdot q_{\mathrm{max}}\)
and then
\(S = r_{\mathrm{max}} / q_{\mathrm{max}}\)
We directly use the maximum magnitude of weight values as \(r_{\mathrm{max}}\).
def get_quantization_scale_for_weight(weight, bitwidth):
"""
get quantization scale for single tensor of weight
:param weight: [torch.(cuda.)Tensor] floating weight to be quantized
:param bitwidth: [integer] quantization bit width
:return:
[floating scalar] scale
"""
# we just assume values in weight are symmetric
# we also always make zero_point 0 for weight
fp_max = max(weight.abs().max().item(), 5e-7)
_, quantized_max = get_quantized_range(bitwidth)
return fp_max / quantized_max
Recall that for 2D convolution, the weight tensor is a 4-D tensor in the shape of (num_output_channels, num_input_channels, kernel_height, kernel_width).
Intensive experiments show that using the different scaling factors \(S\) and zero points \(Z\) for different output channels will perform better. Therefore, we have to determine scaling factor \(S\) and zero point \(Z\) for the subtensor of each output channel independently.
def linear_quantize_weight_per_channel(tensor, bitwidth):
"""
linear quantization for weight tensor
using different scales and zero_points for different output channels
:param tensor: [torch.(cuda.)Tensor] floating weight to be quantized
:param bitwidth: [int] quantization bit width
:return:
[torch.(cuda.)Tensor] quantized tensor
[torch.(cuda.)Tensor] scale tensor
[int] zero point (which is always 0)
"""
dim_output_channels = 0
num_output_channels = tensor.shape[dim_output_channels]
scale = torch.zeros(num_output_channels, device=tensor.device)
for oc in range(num_output_channels):
_subtensor = tensor.select(dim_output_channels, oc)
_scale = get_quantization_scale_for_weight(_subtensor, bitwidth)
scale[oc] = _scale
scale_shape = [1] * tensor.dim()
scale_shape[dim_output_channels] = -1
scale = scale.view(scale_shape)
quantized_tensor = linear_quantize(tensor, bitwidth, scale, zero_point=0)
return quantized_tensor, scale, 0

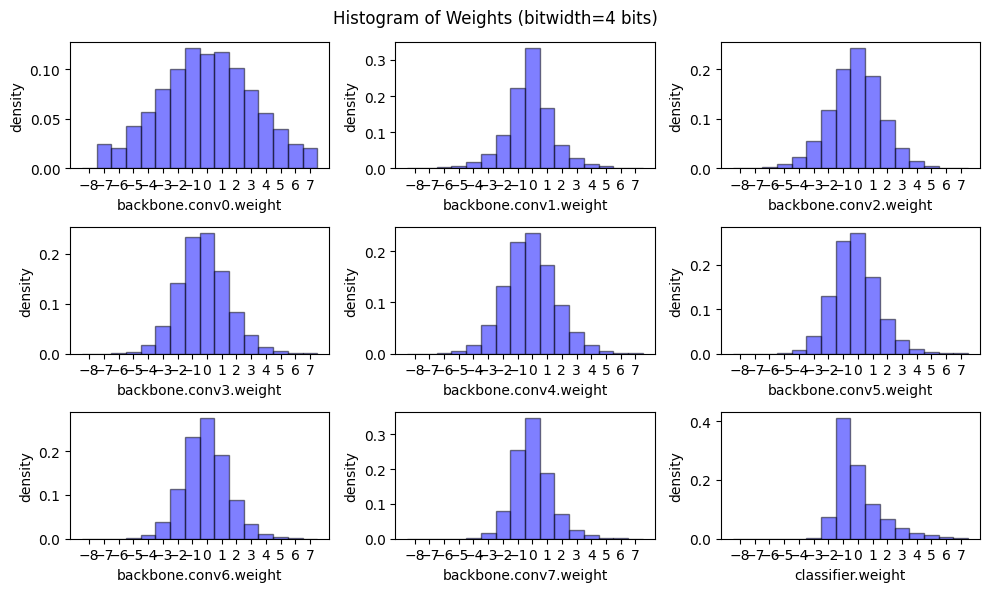

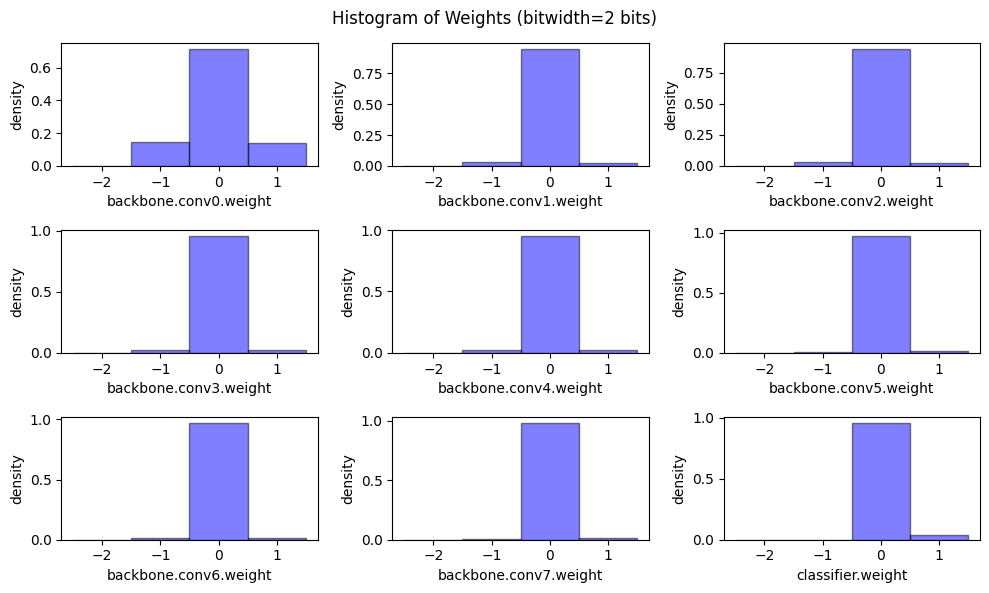

Now let’s have a peek on the weight distribution and model size when applying linear quantization on weights with different bitwidths.
@torch.no_grad()
def peek_linear_quantization():
for bitwidth in [4, 2]:
for name, param in model.named_parameters():
if param.dim() > 1:
quantized_param, scale, zero_point = \
linear_quantize_weight_per_channel(param, bitwidth)
param.copy_(quantized_param)
plot_weight_distribution(model, bitwidth)
recover_model()
peek_linear_quantization()
Quantized Inference
After quantization, the inference of convolution and fully-connected layers also change.
Recall that \(r = S(q-Z)\), and we have
\(r_{\mathrm{input}} = S_{\mathrm{input}}(q_{\mathrm{input}}-Z_{\mathrm{input}})\)
\(r_{\mathrm{weight}} = S_{\mathrm{weight}}(q_{\mathrm{weight}}-Z_{\mathrm{weight}})\)
\(r_{\mathrm{bias}} = S_{\mathrm{bias}}(q_{\mathrm{bias}}-Z_{\mathrm{bias}})\)
Since \(Z_{\mathrm{weight}}=0\), \(r_{\mathrm{weight}} = S_{\mathrm{weight}}q_{\mathrm{weight}}\).
The floating point convolution can be written as,
\(r_{\mathrm{output}} = \mathrm{CONV}[r_{\mathrm{input}}, r_{\mathrm{weight}}] + r_{\mathrm{bias}}\\ \;\;\;\;\;\;\;\;= \mathrm{CONV}[S_{\mathrm{input}}(q_{\mathrm{input}}-Z_{\mathrm{input}}), S_{\mathrm{weight}}q_{\mathrm{weight}}] + S_{\mathrm{bias}}(q_{\mathrm{bias}}-Z_{\mathrm{bias}})\\ \;\;\;\;\;\;\;\;= \mathrm{CONV}[q_{\mathrm{input}}-Z_{\mathrm{input}}, q_{\mathrm{weight}}]\cdot (S_{\mathrm{input}} \cdot S_{\mathrm{weight}}) + S_{\mathrm{bias}}(q_{\mathrm{bias}}-Z_{\mathrm{bias}})\)
To further simplify the computation, we could let
\(Z_{\mathrm{bias}} = 0\)
\(S_{\mathrm{bias}} = S_{\mathrm{input}} \cdot S_{\mathrm{weight}}\)
so that
\(r_{\mathrm{output}} = (\mathrm{CONV}[q_{\mathrm{input}}-Z_{\mathrm{input}}, q_{\mathrm{weight}}] + q_{\mathrm{bias}})\cdot (S_{\mathrm{input}} \cdot S_{\mathrm{weight}})\) \(\;\;\;\;\;\;\;\;= (\mathrm{CONV}[q_{\mathrm{input}}, q_{\mathrm{weight}}] - \mathrm{CONV}[Z_{\mathrm{input}}, q_{\mathrm{weight}}] + q_{\mathrm{bias}})\cdot (S_{\mathrm{input}}S_{\mathrm{weight}})\)
Since > \(r_{\mathrm{output}} = S_{\mathrm{output}}(q_{\mathrm{output}}-Z_{\mathrm{output}})\)
we have > \(S_{\mathrm{output}}(q_{\mathrm{output}}-Z_{\mathrm{output}}) = (\mathrm{CONV}[q_{\mathrm{input}}, q_{\mathrm{weight}}] - \mathrm{CONV}[Z_{\mathrm{input}}, q_{\mathrm{weight}}] + q_{\mathrm{bias}})\cdot (S_{\mathrm{input}} S_{\mathrm{weight}})\)
and thus > \(q_{\mathrm{output}} = (\mathrm{CONV}[q_{\mathrm{input}}, q_{\mathrm{weight}}] - \mathrm{CONV}[Z_{\mathrm{input}}, q_{\mathrm{weight}}] + q_{\mathrm{bias}})\cdot (S_{\mathrm{input}}S_{\mathrm{weight}} / S_{\mathrm{output}}) + Z_{\mathrm{output}}\)
Since \(Z_{\mathrm{input}}\), \(q_{\mathrm{weight}}\), \(q_{\mathrm{bias}}\) are determined before inference, let
\(Q_{\mathrm{bias}} = q_{\mathrm{bias}} - \mathrm{CONV}[Z_{\mathrm{input}}, q_{\mathrm{weight}}]\)
we have
\(q_{\mathrm{output}} = (\mathrm{CONV}[q_{\mathrm{input}}, q_{\mathrm{weight}}] + Q_{\mathrm{bias}}) \cdot (S_{\mathrm{input}}S_{\mathrm{weight}} / S_{\mathrm{output}}) + Z_{\mathrm{output}}\)
Similarily, for fully-connected layer, we have
\(q_{\mathrm{output}} = (\mathrm{Linear}[q_{\mathrm{input}}, q_{\mathrm{weight}}] + Q_{\mathrm{bias}})\cdot (S_{\mathrm{input}} \cdot S_{\mathrm{weight}} / S_{\mathrm{output}}) + Z_{\mathrm{output}}\)
where
\(Q_{\mathrm{bias}} = q_{\mathrm{bias}} - \mathrm{Linear}[Z_{\mathrm{input}}, q_{\mathrm{weight}}]\)
From the above deduction, we know that
\(Z_{\mathrm{bias}} = 0\)
\(S_{\mathrm{bias}} = S_{\mathrm{input}} \cdot S_{\mathrm{weight}}\)
def linear_quantize_bias_per_output_channel(bias, weight_scale, input_scale):
"""
linear quantization for single bias tensor
quantized_bias = fp_bias / bias_scale
:param bias: [torch.FloatTensor] bias weight to be quantized
:param weight_scale: [float or torch.FloatTensor] weight scale tensor
:param input_scale: [float] input scale
:return:
[torch.IntTensor] quantized bias tensor
"""
assert(bias.dim() == 1)
assert(bias.dtype == torch.float)
assert(isinstance(input_scale, float))
if isinstance(weight_scale, torch.Tensor):
assert(weight_scale.dtype == torch.float)
weight_scale = weight_scale.view(-1)
assert(bias.numel() == weight_scale.numel())
bias_scale = weight_scale * input_scale
quantized_bias = linear_quantize(bias, 32, bias_scale,
zero_point=0, dtype=torch.int32)
return quantized_bias, bias_scale, 0
For quantized fully-connected layer, we first precompute \(Q_{\mathrm{bias}}\). Recall that \(Q_{\mathrm{bias}} = q_{\mathrm{bias}} - \mathrm{Linear}[Z_{\mathrm{input}}, q_{\mathrm{weight}}]\).
def shift_quantized_linear_bias(quantized_bias, quantized_weight, input_zero_point):
"""
shift quantized bias to incorporate input_zero_point for nn.Linear
shifted_quantized_bias = quantized_bias - Linear(input_zero_point, quantized_weight)
:param quantized_bias: [torch.IntTensor] quantized bias (torch.int32)
:param quantized_weight: [torch.CharTensor] quantized weight (torch.int8)
:param input_zero_point: [int] input zero point
:return:
[torch.IntTensor] shifted quantized bias tensor
"""
assert(quantized_bias.dtype == torch.int32)
assert(isinstance(input_zero_point, int))
return quantized_bias - quantized_weight.sum(1).to(torch.int32) * input_zero_point
Hint:
\(q_{\mathrm{output}} = (\mathrm{Linear}[q_{\mathrm{input}}, q_{\mathrm{weight}}] + Q_{\mathrm{bias}})\cdot (S_{\mathrm{input}} S_{\mathrm{weight}} / S_{\mathrm{output}}) + Z_{\mathrm{output}}\)
def quantized_linear(input, weight, bias, feature_bitwidth, weight_bitwidth,
input_zero_point, output_zero_point,
input_scale, weight_scale, output_scale):
"""
quantized fully-connected layer
:param input: [torch.CharTensor] quantized input (torch.int8)
:param weight: [torch.CharTensor] quantized weight (torch.int8)
:param bias: [torch.IntTensor] shifted quantized bias or None (torch.int32)
:param feature_bitwidth: [int] quantization bit width of input and output
:param weight_bitwidth: [int] quantization bit width of weight
:param input_zero_point: [int] input zero point
:param output_zero_point: [int] output zero point
:param input_scale: [float] input feature scale
:param weight_scale: [torch.FloatTensor] weight per-channel scale
:param output_scale: [float] output feature scale
:return:
[torch.CharIntTensor] quantized output feature (torch.int8)
"""
assert(input.dtype == torch.int8)
assert(weight.dtype == input.dtype)
assert(bias is None or bias.dtype == torch.int32)
assert(isinstance(input_zero_point, int))
assert(isinstance(output_zero_point, int))
assert(isinstance(input_scale, float))
assert(isinstance(output_scale, float))
assert(weight_scale.dtype == torch.float)
# Step 1: integer-based fully-connected (8-bit multiplication with 32-bit accumulation)
if 'cpu' in input.device.type:
# use 32-b MAC for simplicity
output = torch.nn.functional.linear(input.to(torch.int32), weight.to(torch.int32), bias)
else:
# current version pytorch does not yet support integer-based linear() on GPUs
output = torch.nn.functional.linear(input.float(), weight.float(), bias.float())
# Step 2: scale the output
# hint: 1. scales are floating numbers, we need to convert output to float as well
# 2. the shape of weight scale is [oc, 1, 1, 1] while the shape of output is [batch_size, oc]
output = output.float() * (input_scale * weight_scale / output_scale).view(1, -1)
# Step 3: shift output by output_zero_point
# hint: one line of code
output = output + output_zero_point
# Make sure all value lies in the bitwidth-bit range
output = output.round().clamp(*get_quantized_range(feature_bitwidth)).to(torch.int8)
return output
Let’s verify the functionality of defined quantized fully connected layer.
test_quantized_fc()
* Test quantized_fc()
target bitwidth: 2 bits
batch size: 4
input channels: 8
output channels: 8
* Test passed.
For quantized convolution layer, we first precompute \(Q_{\mathrm{bias}}\). Recall that \(Q_{\mathrm{bias}} = q_{\mathrm{bias}} - \mathrm{CONV}[Z_{\mathrm{input}}, q_{\mathrm{weight}}]\).
def shift_quantized_conv2d_bias(quantized_bias, quantized_weight, input_zero_point):
"""
shift quantized bias to incorporate input_zero_point for nn.Conv2d
shifted_quantized_bias = quantized_bias - Conv(input_zero_point, quantized_weight)
:param quantized_bias: [torch.IntTensor] quantized bias (torch.int32)
:param quantized_weight: [torch.CharTensor] quantized weight (torch.int8)
:param input_zero_point: [int] input zero point
:return:
[torch.IntTensor] shifted quantized bias tensor
"""
assert(quantized_bias.dtype == torch.int32)
assert(isinstance(input_zero_point, int))
return quantized_bias - quantized_weight.sum((1,2,3)).to(torch.int32) * input_zero_point
Hint: > \(q_{\mathrm{output}} = (\mathrm{CONV}[q_{\mathrm{input}}, q_{\mathrm{weight}}] + Q_{\mathrm{bias}}) \cdot (S_{\mathrm{input}}S_{\mathrm{weight}} / S_{\mathrm{output}}) + Z_{\mathrm{output}}\)
def quantized_conv2d(input, weight, bias, feature_bitwidth, weight_bitwidth,
input_zero_point, output_zero_point,
input_scale, weight_scale, output_scale,
stride, padding, dilation, groups):
"""
quantized 2d convolution
:param input: [torch.CharTensor] quantized input (torch.int8)
:param weight: [torch.CharTensor] quantized weight (torch.int8)
:param bias: [torch.IntTensor] shifted quantized bias or None (torch.int32)
:param feature_bitwidth: [int] quantization bit width of input and output
:param weight_bitwidth: [int] quantization bit width of weight
:param input_zero_point: [int] input zero point
:param output_zero_point: [int] output zero point
:param input_scale: [float] input feature scale
:param weight_scale: [torch.FloatTensor] weight per-channel scale
:param output_scale: [float] output feature scale
:return:
[torch.(cuda.)CharTensor] quantized output feature
"""
assert(len(padding) == 4)
assert(input.dtype == torch.int8)
assert(weight.dtype == input.dtype)
assert(bias is None or bias.dtype == torch.int32)
assert(isinstance(input_zero_point, int))
assert(isinstance(output_zero_point, int))
assert(isinstance(input_scale, float))
assert(isinstance(output_scale, float))
assert(weight_scale.dtype == torch.float)
# Step 1: calculate integer-based 2d convolution (8-bit multiplication with 32-bit accumulation)
input = torch.nn.functional.pad(input, padding, 'constant', input_zero_point)
if 'cpu' in input.device.type:
# use 32-b MAC for simplicity
output = torch.nn.functional.conv2d(input.to(torch.int32), weight.to(torch.int32), None, stride, 0, dilation, groups)
else:
# current version pytorch does not yet support integer-based conv2d() on GPUs
output = torch.nn.functional.conv2d(input.float(), weight.float(), None, stride, 0, dilation, groups)
output = output.round().to(torch.int32)
if bias is not None:
output = output + bias.view(1, -1, 1, 1)
# hint: this code block should be the very similar to quantized_linear()
# Step 2: scale the output
# hint: 1. scales are floating numbers, we need to convert output to float as well
# 2. the shape of weight scale is [oc, 1, 1, 1] while the shape of output is [batch_size, oc, height, width]
output = output.float() * (input_scale * weight_scale / output_scale).view(1, -1, 1, 1)
# Step 3: shift output by output_zero_point
# hint: one line of code
output = output + output_zero_point
# Make sure all value lies in the bitwidth-bit range
output = output.round().clamp(*get_quantized_range(feature_bitwidth)).to(torch.int8)
return output
Finally, we are putting everything together and perform post-training
int8 quantization for the model. We will convert the convolutional
and linear layers in the model to a quantized version one-by-one.
Firstly, we will fuse a BatchNorm layer into its previous convolutional layer, which is a standard practice before quantization. Fusing batchnorm reduces the extra multiplication during inference.
We will also verify that the fused model model_fused has the same
accuracy as the original model (BN fusion is an equivalent transform
that does not change network functionality).
def fuse_conv_bn(conv, bn):
# modified from https://mmcv.readthedocs.io/en/latest/_modules/mmcv/cnn/utils/fuse_conv_bn.html
assert conv.bias is None
factor = bn.weight.data / torch.sqrt(bn.running_var.data + bn.eps)
conv.weight.data = conv.weight.data * factor.reshape(-1, 1, 1, 1)
conv.bias = nn.Parameter(- bn.running_mean.data * factor + bn.bias.data)
return conv
print('Before conv-bn fusion: backbone length', len(model.backbone))
# fuse the batchnorm into conv layers
recover_model()
model_fused = copy.deepcopy(model)
fused_backbone = []
ptr = 0
while ptr < len(model_fused.backbone):
if isinstance(model_fused.backbone[ptr], nn.Conv2d) and \
isinstance(model_fused.backbone[ptr + 1], nn.BatchNorm2d):
fused_backbone.append(fuse_conv_bn(
model_fused.backbone[ptr], model_fused.backbone[ptr+ 1]))
ptr += 2
else:
fused_backbone.append(model_fused.backbone[ptr])
ptr += 1
model_fused.backbone = nn.Sequential(*fused_backbone)
print('After conv-bn fusion: backbone length', len(model_fused.backbone))
# sanity check, no BN anymore
for m in model_fused.modules():
assert not isinstance(m, nn.BatchNorm2d)
# the accuracy will remain the same after fusion
fused_acc = evaluate(model_fused, dataloader['test'])
print(f'Accuracy of the fused model={fused_acc:.2f}%')
Before conv-bn fusion: backbone length 29
After conv-bn fusion: backbone length 21
eval: 0%| | 0/20 [00:00<?, ?it/s]
Accuracy of the fused model=92.95%
We will run the model with some sample data to get the range of each feature map, so that we can get the range of the feature maps and compute their corresponding scaling factors and zero points.
# add hook to record the min max value of the activation
input_activation = {}
output_activation = {}
def add_range_recoder_hook(model):
import functools
def _record_range(self, x, y, module_name):
x = x[0]
input_activation[module_name] = x.detach()
output_activation[module_name] = y.detach()
all_hooks = []
for name, m in model.named_modules():
if isinstance(m, (nn.Conv2d, nn.Linear, nn.ReLU)):
all_hooks.append(m.register_forward_hook(
functools.partial(_record_range, module_name=name)))
return all_hooks
hooks = add_range_recoder_hook(model_fused)
sample_data = iter(dataloader['train']).__next__()[0]
model_fused(sample_data.cuda())
# remove hooks
for h in hooks:
h.remove()
Finally, let’s do model quantization. We will convert the model in the following mapping
nn.Conv2d: QuantizedConv2d,
nn.Linear: QuantizedLinear,
# the following twos are just wrappers, as current
# torch modules do not support int8 data format;
# we will temporarily convert them to fp32 for computation
nn.MaxPool2d: QuantizedMaxPool2d,
nn.AvgPool2d: QuantizedAvgPool2d,
class QuantizedConv2d(nn.Module):
def __init__(self, weight, bias,
input_zero_point, output_zero_point,
input_scale, weight_scale, output_scale,
stride, padding, dilation, groups,
feature_bitwidth=8, weight_bitwidth=8):
super().__init__()
# current version Pytorch does not support IntTensor as nn.Parameter
self.register_buffer('weight', weight)
self.register_buffer('bias', bias)
self.input_zero_point = input_zero_point
self.output_zero_point = output_zero_point
self.input_scale = input_scale
self.register_buffer('weight_scale', weight_scale)
self.output_scale = output_scale
self.stride = stride
self.padding = (padding[1], padding[1], padding[0], padding[0])
self.dilation = dilation
self.groups = groups
self.feature_bitwidth = feature_bitwidth
self.weight_bitwidth = weight_bitwidth
def forward(self, x):
return quantized_conv2d(
x, self.weight, self.bias,
self.feature_bitwidth, self.weight_bitwidth,
self.input_zero_point, self.output_zero_point,
self.input_scale, self.weight_scale, self.output_scale,
self.stride, self.padding, self.dilation, self.groups
)
class QuantizedLinear(nn.Module):
def __init__(self, weight, bias,
input_zero_point, output_zero_point,
input_scale, weight_scale, output_scale,
feature_bitwidth=8, weight_bitwidth=8):
super().__init__()
# current version Pytorch does not support IntTensor as nn.Parameter
self.register_buffer('weight', weight)
self.register_buffer('bias', bias)
self.input_zero_point = input_zero_point
self.output_zero_point = output_zero_point
self.input_scale = input_scale
self.register_buffer('weight_scale', weight_scale)
self.output_scale = output_scale
self.feature_bitwidth = feature_bitwidth
self.weight_bitwidth = weight_bitwidth
def forward(self, x):
return quantized_linear(
x, self.weight, self.bias,
self.feature_bitwidth, self.weight_bitwidth,
self.input_zero_point, self.output_zero_point,
self.input_scale, self.weight_scale, self.output_scale
)
class QuantizedMaxPool2d(nn.MaxPool2d):
def forward(self, x):
# current version PyTorch does not support integer-based MaxPool
return super().forward(x.float()).to(torch.int8)
class QuantizedAvgPool2d(nn.AvgPool2d):
def forward(self, x):
# current version PyTorch does not support integer-based AvgPool
return super().forward(x.float()).to(torch.int8)
# we use int8 quantization, which is quite popular
feature_bitwidth = weight_bitwidth = 8
quantized_model = copy.deepcopy(model_fused)
quantized_backbone = []
ptr = 0
while ptr < len(quantized_model.backbone):
if isinstance(quantized_model.backbone[ptr], nn.Conv2d) and \
isinstance(quantized_model.backbone[ptr + 1], nn.ReLU):
conv = quantized_model.backbone[ptr]
conv_name = f'backbone.{ptr}'
relu = quantized_model.backbone[ptr + 1]
relu_name = f'backbone.{ptr + 1}'
input_scale, input_zero_point = \
get_quantization_scale_and_zero_point(
input_activation[conv_name], feature_bitwidth)
output_scale, output_zero_point = \
get_quantization_scale_and_zero_point(
output_activation[relu_name], feature_bitwidth)
quantized_weight, weight_scale, weight_zero_point = \
linear_quantize_weight_per_channel(conv.weight.data, weight_bitwidth)
quantized_bias, bias_scale, bias_zero_point = \
linear_quantize_bias_per_output_channel(
conv.bias.data, weight_scale, input_scale)
shifted_quantized_bias = \
shift_quantized_conv2d_bias(quantized_bias, quantized_weight,
input_zero_point)
quantized_conv = QuantizedConv2d(
quantized_weight, shifted_quantized_bias,
input_zero_point, output_zero_point,
input_scale, weight_scale, output_scale,
conv.stride, conv.padding, conv.dilation, conv.groups,
feature_bitwidth=feature_bitwidth, weight_bitwidth=weight_bitwidth
)
quantized_backbone.append(quantized_conv)
ptr += 2
elif isinstance(quantized_model.backbone[ptr], nn.MaxPool2d):
quantized_backbone.append(QuantizedMaxPool2d(
kernel_size=quantized_model.backbone[ptr].kernel_size,
stride=quantized_model.backbone[ptr].stride
))
ptr += 1
elif isinstance(quantized_model.backbone[ptr], nn.AvgPool2d):
quantized_backbone.append(QuantizedAvgPool2d(
kernel_size=quantized_model.backbone[ptr].kernel_size,
stride=quantized_model.backbone[ptr].stride
))
ptr += 1
else:
raise NotImplementedError(type(quantized_model.backbone[ptr])) # should not happen
quantized_model.backbone = nn.Sequential(*quantized_backbone)
# finally, quantized the classifier
fc_name = 'classifier'
fc = model.classifier
input_scale, input_zero_point = \
get_quantization_scale_and_zero_point(
input_activation[fc_name], feature_bitwidth)
output_scale, output_zero_point = \
get_quantization_scale_and_zero_point(
output_activation[fc_name], feature_bitwidth)
quantized_weight, weight_scale, weight_zero_point = \
linear_quantize_weight_per_channel(fc.weight.data, weight_bitwidth)
quantized_bias, bias_scale, bias_zero_point = \
linear_quantize_bias_per_output_channel(
fc.bias.data, weight_scale, input_scale)
shifted_quantized_bias = \
shift_quantized_linear_bias(quantized_bias, quantized_weight,
input_zero_point)
quantized_model.classifier = QuantizedLinear(
quantized_weight, shifted_quantized_bias,
input_zero_point, output_zero_point,
input_scale, weight_scale, output_scale,
feature_bitwidth=feature_bitwidth, weight_bitwidth=weight_bitwidth
)
The quantization process is done! Let’s print and visualize the model architecture and also verify the accuracy of the quantized model.
To run the quantized model, we need an extra preprocessing to map the
input data from range (0, 1) into int8 range of (-128, 127). Fill in
the code below to finish the extra preprocessing.
Hint: you should find that the quantized model has roughly the same
accuracy as the fp32 counterpart.
print(quantized_model)
def extra_preprocess(x):
# hint: you need to convert the original fp32 input of range (0, 1)
# into int8 format of range (-128, 127)
############### YOUR CODE STARTS HERE ###############
return (x * 255 - 128).clamp(-128, 127).to(torch.int8)
############### YOUR CODE ENDS HERE #################
int8_model_accuracy = evaluate(quantized_model, dataloader['test'],
extra_preprocess=[extra_preprocess])
print(f"int8 model has accuracy={int8_model_accuracy:.2f}%")
VGG(
(backbone): Sequential(
(0): QuantizedConv2d()
(1): QuantizedConv2d()
(2): QuantizedMaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
(3): QuantizedConv2d()
(4): QuantizedConv2d()
(5): QuantizedMaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
(6): QuantizedConv2d()
(7): QuantizedConv2d()
(8): QuantizedMaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
(9): QuantizedConv2d()
(10): QuantizedConv2d()
(11): QuantizedMaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
(12): QuantizedAvgPool2d(kernel_size=2, stride=2, padding=0)
)
(classifier): QuantizedLinear()
)
eval: 0%| | 0/20 [00:00<?, ?it/s]
int8 model has accuracy=92.90%
